Description
Key Features:
- Compact size
- Easy install
- Lock-in and lock-out safety system
- Stainless steel and blue anodised aluminium fittings
- Powder-coated steel frame construction
- Travel lock and key
- Anodised blue faceplate
Includes:
- All fixing and tie-down straps
- Pre-drilled tray holes
- MSA 4X4 Lifetime Guarantee
Note:
4 sizes available to suit a variety of applications, click here to view size compatibility chart. MSA 4X4 Fridge Barriers available for all models.

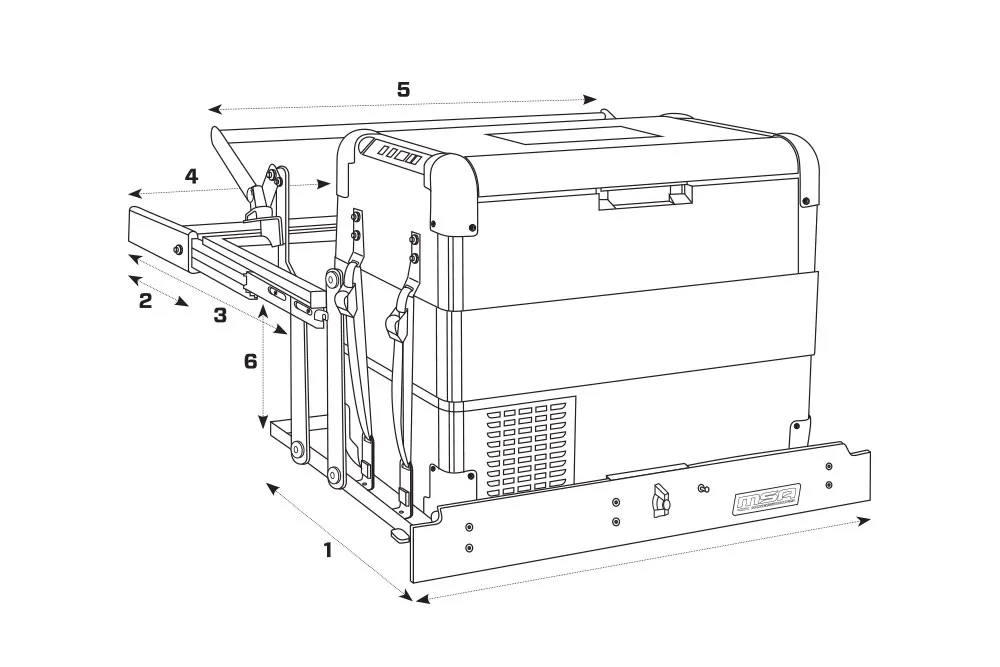

| Weight | 95.6lbs / 42kg | ![]() |
| Freight Dimensions | 1130×680×170 | |
| Fridge Tray1 | 465×830 | |
| Slide Length Closed2 | 540+20 | |
| Slide Length Open3 | 1170+20 | |
| Overall Width4 | 975+20 | |
| Handle Width5 | 920 | |
| Drop6 | 300 | |
| Mount to Base | 35 | |
| Max Set Back | 115 | |
| Gas Strut | 900N | |
| (all measurements displayed are in mm) | ||
