Description
Key Features:
- Compact size
- Easy install
- Lock-in and lock-out safety system
- Stainless steel and blue anodised aluminium fittings
- Powder-coated steel frame construction
- Travel lock and key
- Anodised blue faceplate
Note:
5 sizes available to suit a variety of applications, click here to view size compatibility chart. MSA 4X4 Fridge Barriers available for all models.

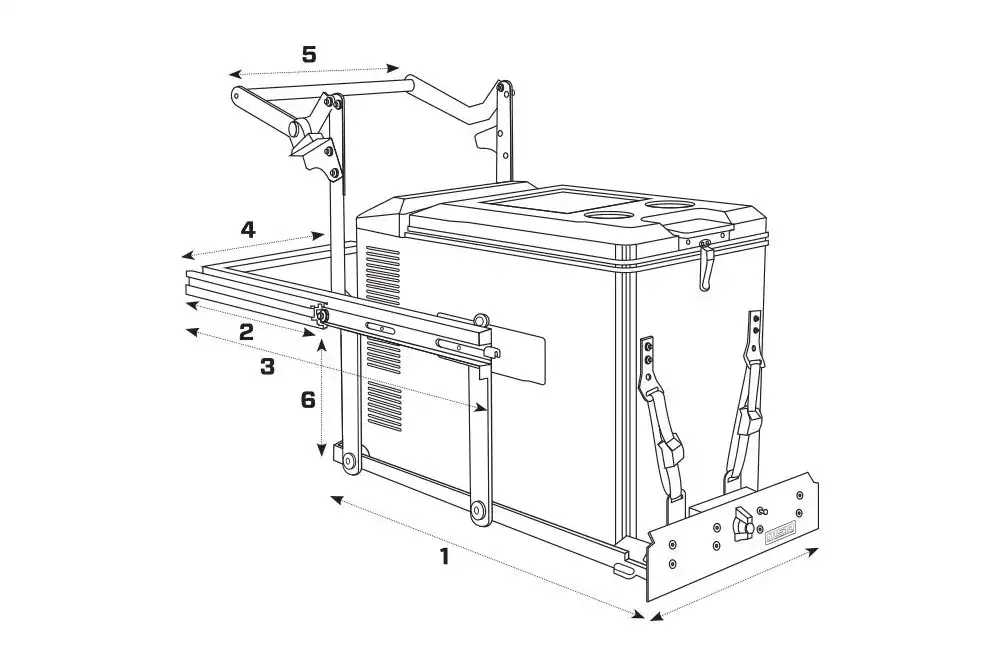

| Weight | 92.6lbs / 42kg | ![]() |
| Freight Dimensions | 1050×740×170 | |
| Fridge Tray1 | 865×535 | |
| Slide Length Closed2 | 930+20 | |
| Slide Length Open3 | 1965+20 | |
| Overall Width4 | 645+20 | |
| Handle Width5 | 590 | |
| Drop6 | 300 | |
| Mount to Base | 35 | |
| Max Set Back | 130 | |
| Gas Strut | 1000N | |
| (all measurements displayed are in mm) | ||
